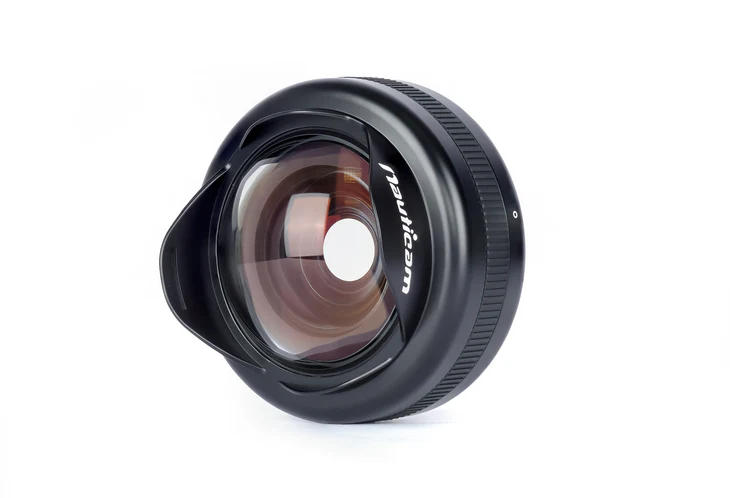

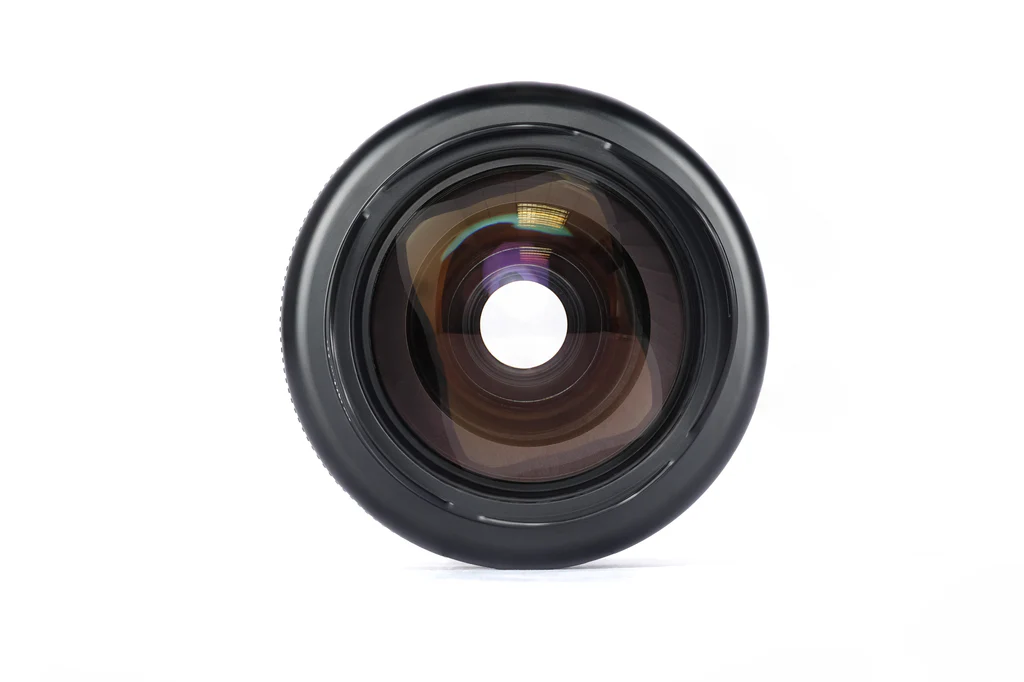

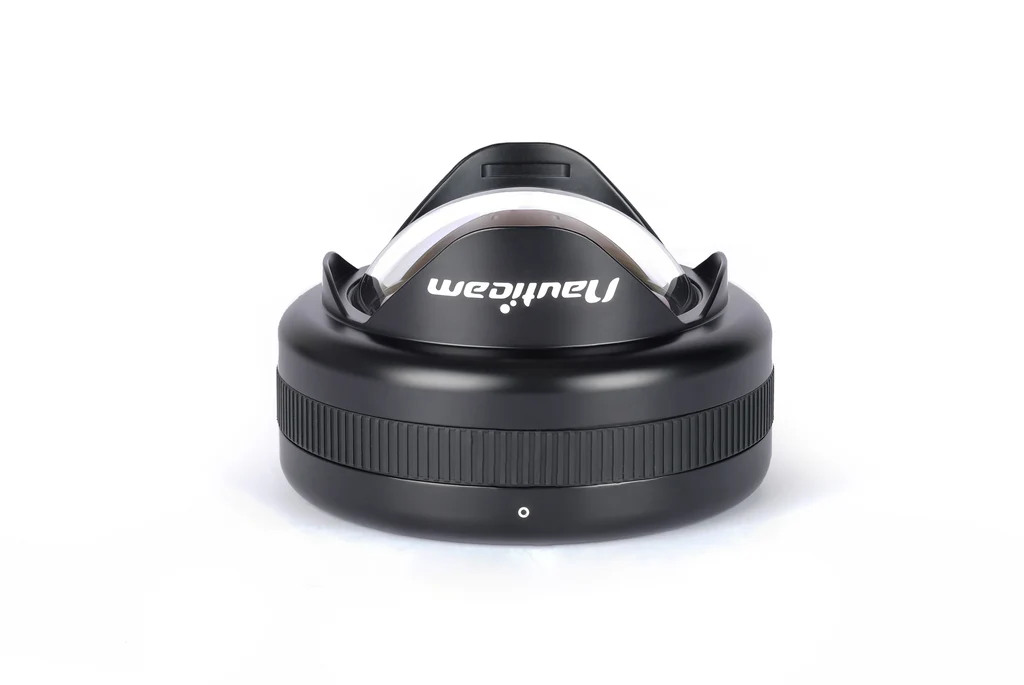

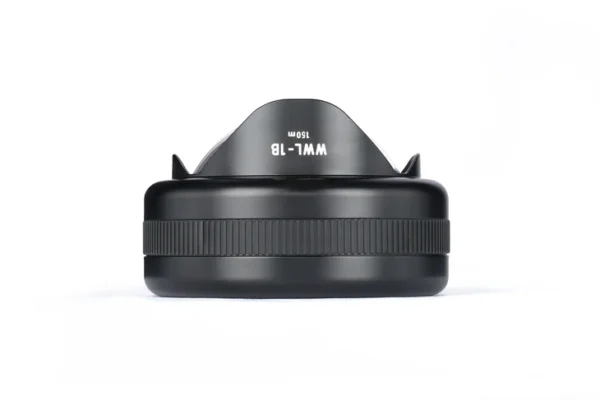

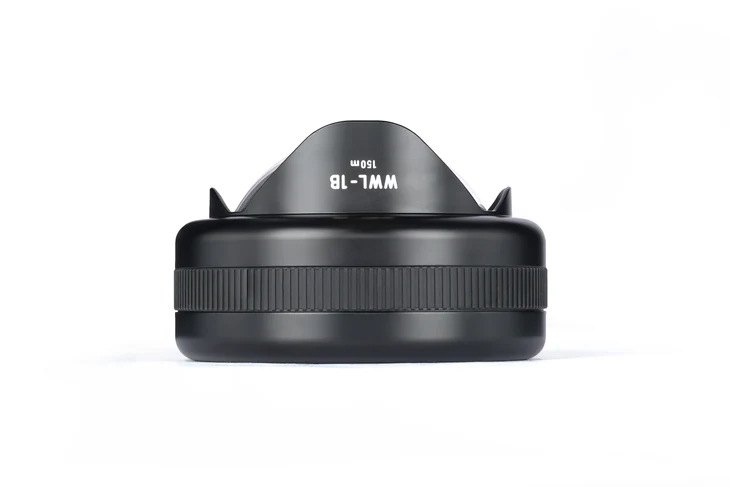

WET WIDE LENS 1B (WWL-1B) 130 deg. FOV with COMPATIBLE 28mm LENSES (incl. float collar)

Technical Specifications

Dimensions Dia. 156mm x 97mm
Weight (air / underwater) 1.35kg / 0.12kg
Body Construction Hard-anodized aluminum alloy
Lens Construction 6 elements in 5 groups
Lens Coating Inside anti-reflective coating
Maximum Field of View (underwater) 130° for 28mm equivalent lens
Focal Range Front element to infinity
Mount System Bayonet Mount II
Depth Rating 150m

Description

The next generation of WWL-1 is here!  The WWL-1B features the same stunningly sharp optics as the WWL-1, but it now includes an integrated aluminum buoyancy collar to make it nearly neutral in water.  The WWL-1 and now WWL-1B are still the highest quality wet-changeable underwater wide-angle conversion optics ever made, featuring unmatched contrast, overall sharpness, corner sharpness, and clarity. The design is truly full zoom through, allowing zoom to to be used as a tool for framing, and removable in water for close-up and macro shots.

Resources

M67 to Bayonet Mount Conversion Tutorial

https://vimeo.com/142689609

NA-GX7 with WWL-1 Demo

https://vimeo.com/144083763

Peter Rowlands, editor of UWPMag.com, put one of our final prototypes through its paces in Southern California. The video he has shared is stunning!

“Overall I am delighted with the optical performance of the lens. The corners are much sharper that what I have been used to and whilst I have no intention of conducting a bench test comparison I feel that the WWL-1 provides better overall resolution across the frame. The impression is of a much cleaner image throughout with far better close focusing ability. As a result I would not like to return to my old lens! ”

Support & Downloads

83202 WWL-1B PDF Manual Download

In the Box:

  • 83202 WWL-1B
  • Hard lens cap for WWL-1B
  • Rear lens cap for WWL-1B
  • Padded carrying bag
  • Lens cloth

Recommended Accessories:

  • 83250 M67 to Bayonet Converter II
  • 83251 M77 to Bayonet Converter II

For optics storage on standard arms

  • 83252 Single Bayonet Holder II for Arms
  • 83253 Double Bayonet Holder II for Arms
  • 83254 Single Bayonet Holder II for Inon Arms

For optics storage on Nauticam Carbon Fiber Float Arms

  • 72234 Double Bayonet Holder II for 70mm Carbon Fiber Float Arms
  • 72233 Single Bayonet Holder II for 70mm Carbon Fiber Float Arms
  • 72244 Double Bayonet Holder II for 90mm Carbon Fiber Float Arms
  • 72243 Single Bayonet Holder II for 90mm Carbon Fiber Float Arms
