Description

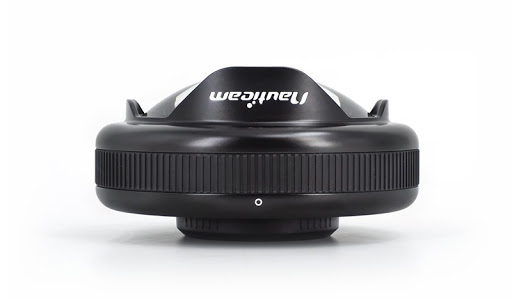

Wet Wide Lens for Compact Cameras (WWL-C)
130 Deg. FOV with Compatible 24mm Lenses
SKU # 83203
The next evolution of the WWL-1 is here! As the versatility and capability of compact cameras increases, Nauticam has developed a smaller and lighter water contact wide angle lens tailored specifically to the compact camera user. Designed from the ground up to match the compact camera’s form factor without sacrificing optical quality, the WWL-C is a powerful addition to not only Nauticam compact housings but also, via an optional adapter, to those from other manufacturers such as the Olympus TG-6 and their PT-059 housing.
Technical Specifications
Dimensions | Dia. 156mm x 78mm |
Weight in Air | 1.05kg |
Weight in Water | 0.17kg |
Lens Construction | 4 elements |
Lens Coatings | Anti-reflective on both sides |
Dome Coating | Multi-layer Broad-band Antireflective Coating |
Focal Range | Front Element to Infinity |
Maximum Field of View (underwater) | 130º for 24mm equivalent lens |
Mounting System | Bayonet Mount |
Depth Rating | 100m |
