Description
Dual use (land/underwater) wide conversion lens specially designed for 28mm wide camera (35mm film equivalent). The maximum view angle is 100.8° underwater for wide imaging and179°on land for fish-eye imaging.
Together with newly designed optical construction, using highly refractive optical elements provides larger effective diameter of the rear optical element in compact size to accommodate with latest camera model carrying larger image sensor and brighter master lens.
Unique optical design allows to shorten minimum focal distance with ultra wide view angle thus effective for wide macro shot.
Optional “Dome Lens Unit II for UWL-H100” further increases maximum view angle to144.8°underwater for semi-fisheye imaging.

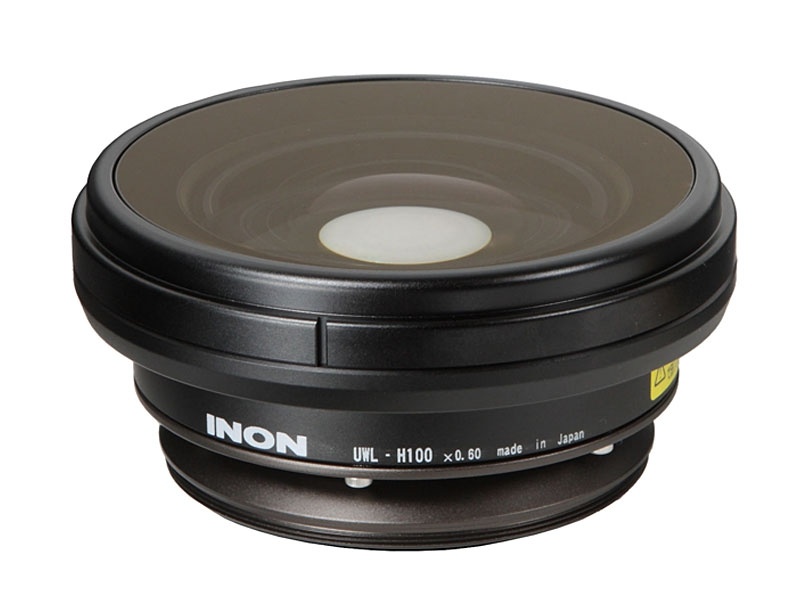

| Model | UWL-H100 28M67 Type1/Type2 |
| Outer diameter / Length | 90.4mm / 45.4mm (3.6in / 1.8in) |
| Weight (air / underwater) | Type1: 555g / approx.345g (19.6oz / 12.2oz) |
| Type2: 556g / approx.346g (19.6oz / 12.2oz) | |
| Lens construction | 4 elements in 4 groups |
| Focal length (air / underwater) | infinity / infinity (afocal system) |
| Magnification (*2) | 0.60 (afocal) |
| Maximum incident view angle (air / underwater) (*3) | 179.0°/100.8° |
| Body material / Finishing | corrosion-resistant aluminum alloy / Rigid black almite |
| Glass / Coating | Optical glass / Both side anti-reflection coating |
| Mount thread diameter / pitch | M67-0.75 |
| Depth rating | 60m (197ft) |
