Description
High Performance Strobe

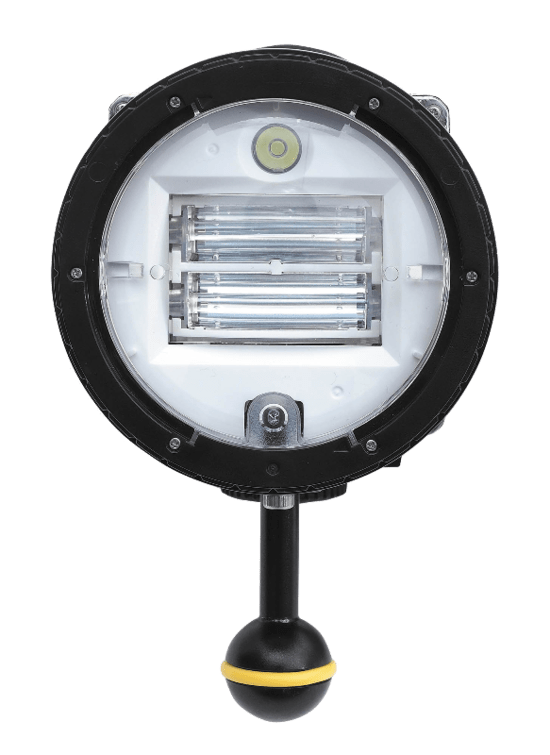

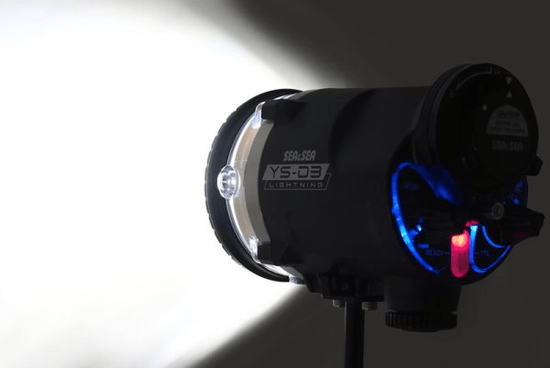

Newly designed circuitry and light-emitting unit produces powerful guide number of 33. In addition, a high precision aspherical optical troidal lens has been fitted over the two flash tubes to disperse an even light from the center to the edge. The strobe`s beam angle will increase to 110°by attaching the standard accessories Diffuser. When the optional Dome diffuser is attached, beam angle will increase to as wide as 150(TBD)
In order to avoid misunderstanding, the YS-D3 guide number (GN) and the beam angle are based on measurements taken on land (not underwater)
Some competitors will often state a GN measured on land and the beam angle in water, for example a GN 33 and beam angle of 110 degrees. However, this GN 33 value is based on a beam angle of 60~70 degrees. The beam angle may be expanded in water by a dome effect, however the GN in water is significantly lower than the value measured on land.
[Guide Number (ISO 100/m) (land)] : 33, 28 (with Diffuser attached)
[Beam Angle] : 80°x105° (without Diffuser), 100°x110°(with Diffuser)
[Batteries] : 4xAA A: 6V Ni-MH: 4.8V
[Number of Flashes *1] : A: 140 Ni-MH: 220
[Recycle time (full) *2] : A: 3.5 sec. Ni-MH: 1.7 sec.
[Color temperature] : 5800K
[Color temperature w/diffuser] : 5500K
[Depth rating] : 100m / 330ft
[Dimensions (WxHxD)] : 92x111x147mm / 3.6 x 4.4 x 5.8 inches (excluding ball base)
[Weight] : 610g / 21.5oz (w/o batteries) (excluding ball base)
[Underwater weight] : Approx.-20g / -0.7oz (incl. batteries ball base)
[Others]
Exposure control: DS-TTL II, Slave TTL, Light level control dial (GN): 1 / 1.4 / 2 / 2.8 /4 / 5.6 /8 / 11 / 16 / 22 / 33 (11 steps)
