Description

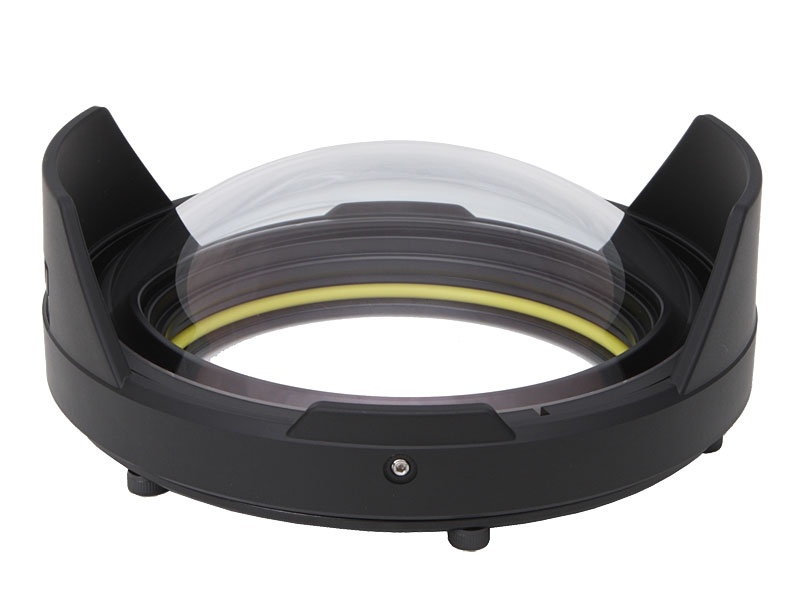

Dedicated super dome option for UWL-H100 series wide conversion lens to increase underwater view angle by simply attached it on the compatible wide conversion lens to provide “more wide angle image” and “more close-up image” comparing to sole use of the UWL-H100 series underwater.

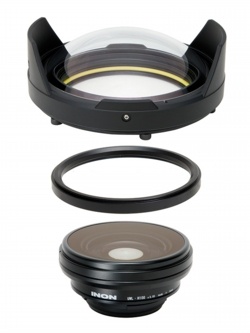

Maximum angle of view underwater is [144.8°] with “UWL-H100 28LD” or “UWL-H100 28M67 Type1/Type2” wide conversion lens .
Unique optical design allows to shorten minimum focal distance with super wide view angle thus effective for ultra wide macro imaging and capturing clear image even in poor visibility condition.
Model | Dome Lens Unit II for UWL-H100 | with UWL-H100 28LD | with UWL-H100 28M67 |
Outer diameter / Length (*2) | Ф132.4mm / 48.2mm (5.2in / 1.9in) |
Ф132.4mm / 72.7mm (5.2in / 2.9in) |
Ф132.4mm / 72.7mm (5.2in / 2.9in) |
Weight (air / underwater) (*2) | 470g/ – (16.5oz / -) |
– / approx.505g (- / 17.8oz) |
– / approx.525g (- / 18.5oz) |
Maximum incident view angle | – | 144.8° | 144.8° |
Body Material / Finishing | Corrosion resistant aluminum alloy/ Rigid black alumite, Polycarbonate etc. |
– | – |
Glass material / Finishing | Optical glass/ Inner anti-reflection multi-coating |
– | – |
Depth rating | – | 60m / 197ft | 60m / 197ft |
