Description
| MODEL | AOI UWL-03II-BLK / WHT |

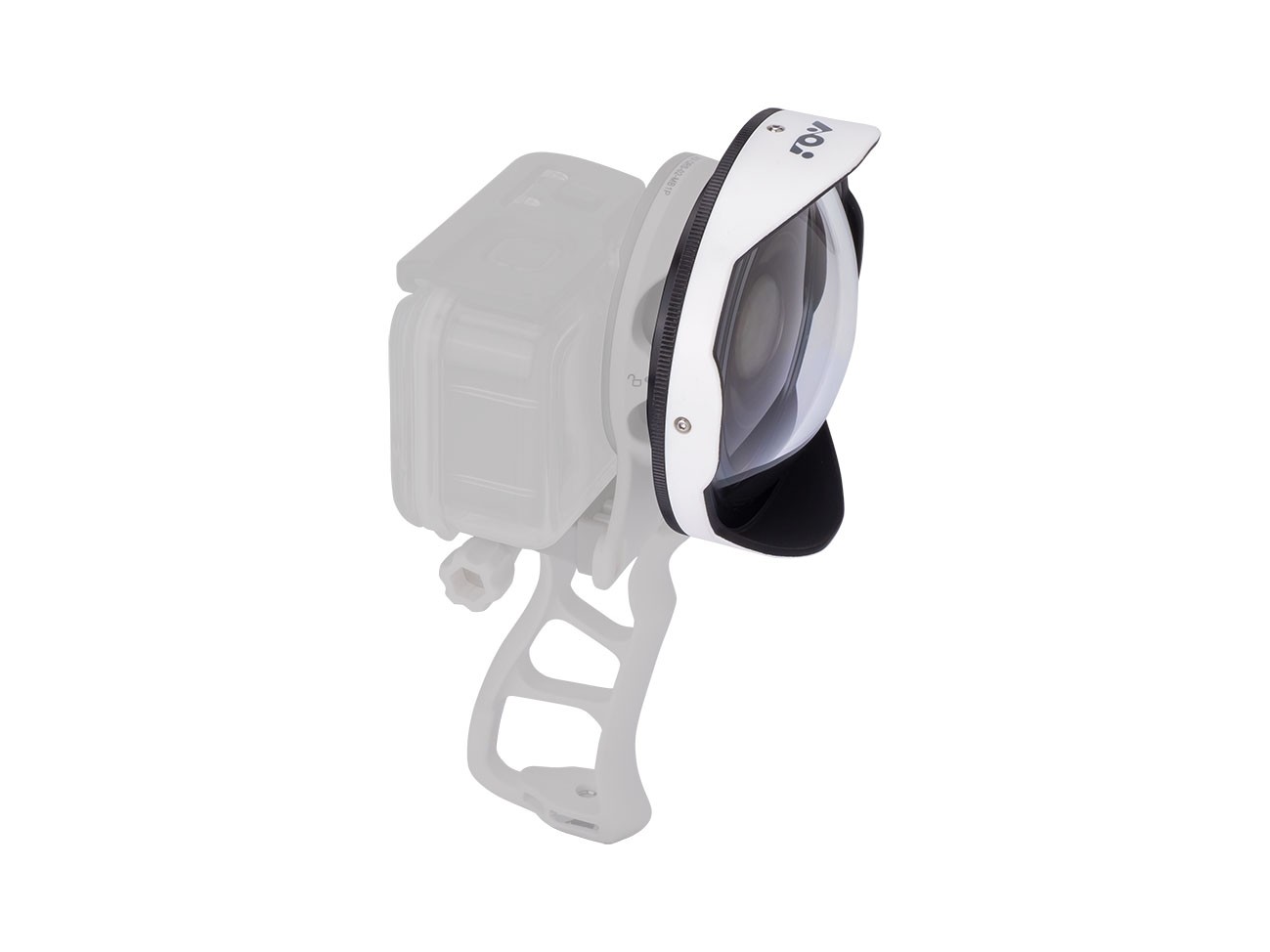

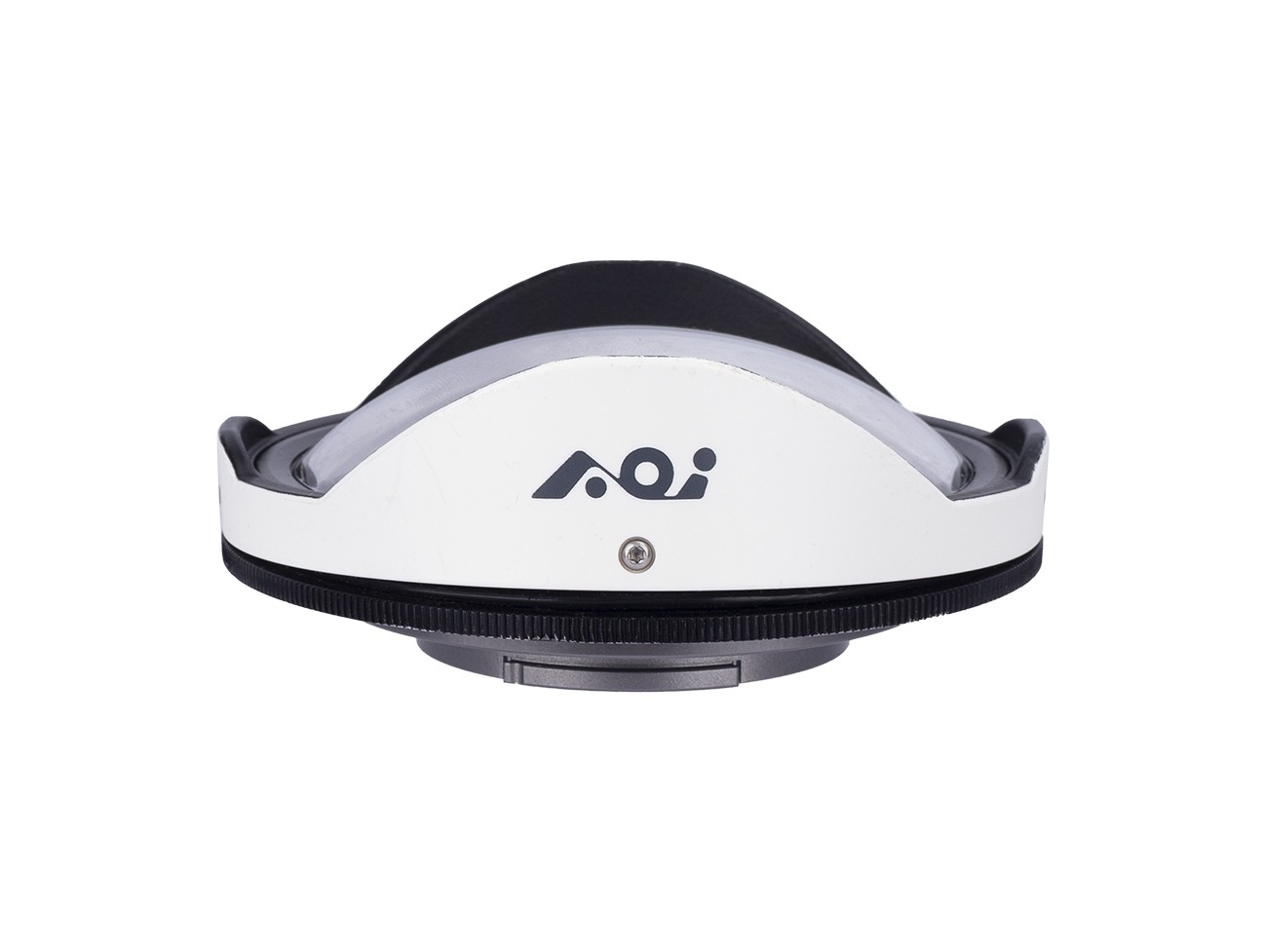

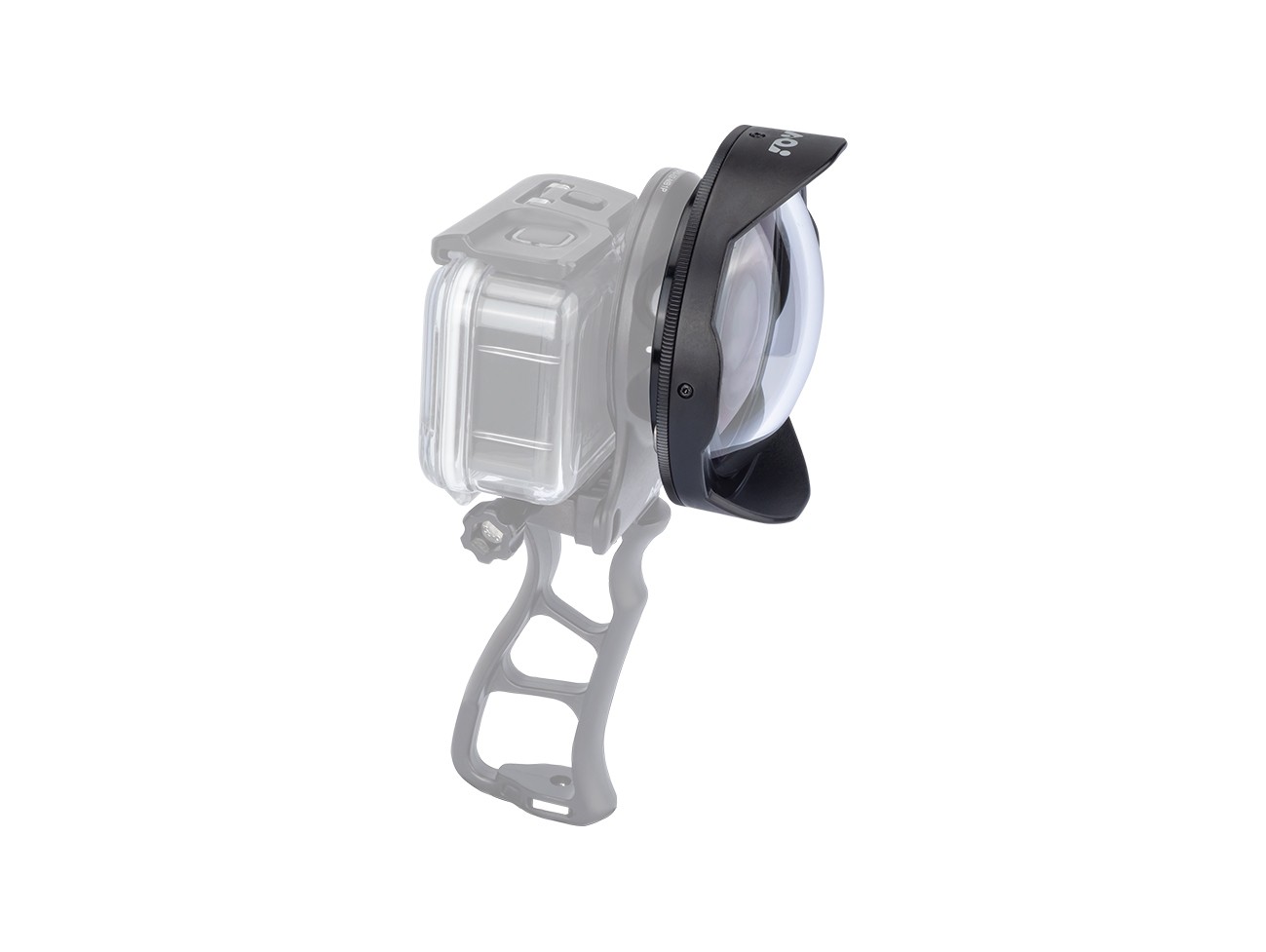

| DESCRIPTION | Underwater 0.73X Wide Angle Conversion Lens Mark II for Action Camera & Phone – Black / White Color |
| LENS CONSTRUCTION | 4 Elements in 4 Groups |
| LENS COATING | Glass Lens Elements with Multi-layers AR Coating, Front Dome Element in Polycarbonate with Hard Coating |
| FIELD OF VIEW | 140° (underwater) |
| 150° (on land) | |
| MAGNIFICATION | 0.73X (underwater) |
| MOUNTING SYSTEM | Using AOI Quick Release System- 02 (QRS-02) |
| Lens pre-installed with QR2 Mount (compatible with the most popular AD Mount) | |
| Optional Mounting Adapter in M55, M52 & M46 available | |
| DEPTH RATING | 60 Meters / 200 Ft. |
| LENS BARREL / LENS HOOD MATERIAL |
Aluminum Alloy with Black Hard Anodized / Polycarbonate |
| WEIGHT (ON LAND / UNDERWATER) |
364 g (on land) 164 g (underwater) |
| DIMENSIONS | 99mm (D) X40.3mm (H) |
| ACCESSORIES | Dome Lens Hard Cover (DHC-02) & Rear Lens Cap (AOI QRS-02-RC1), Lens Secure Line, Lens Pouch |
