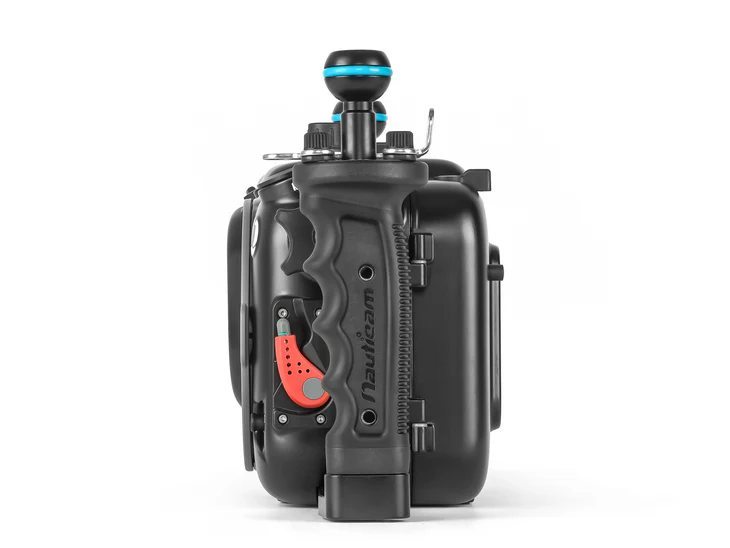

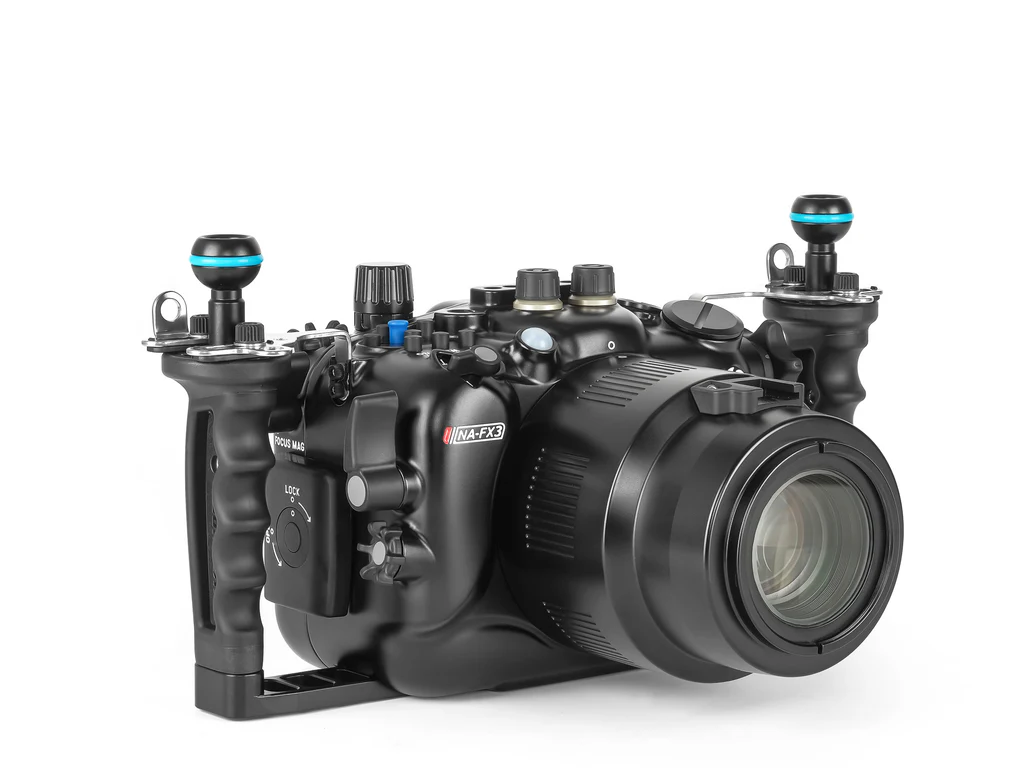

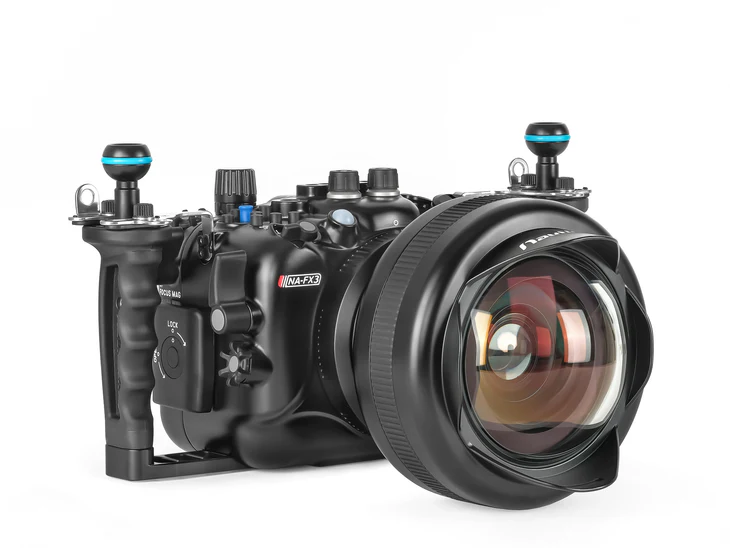

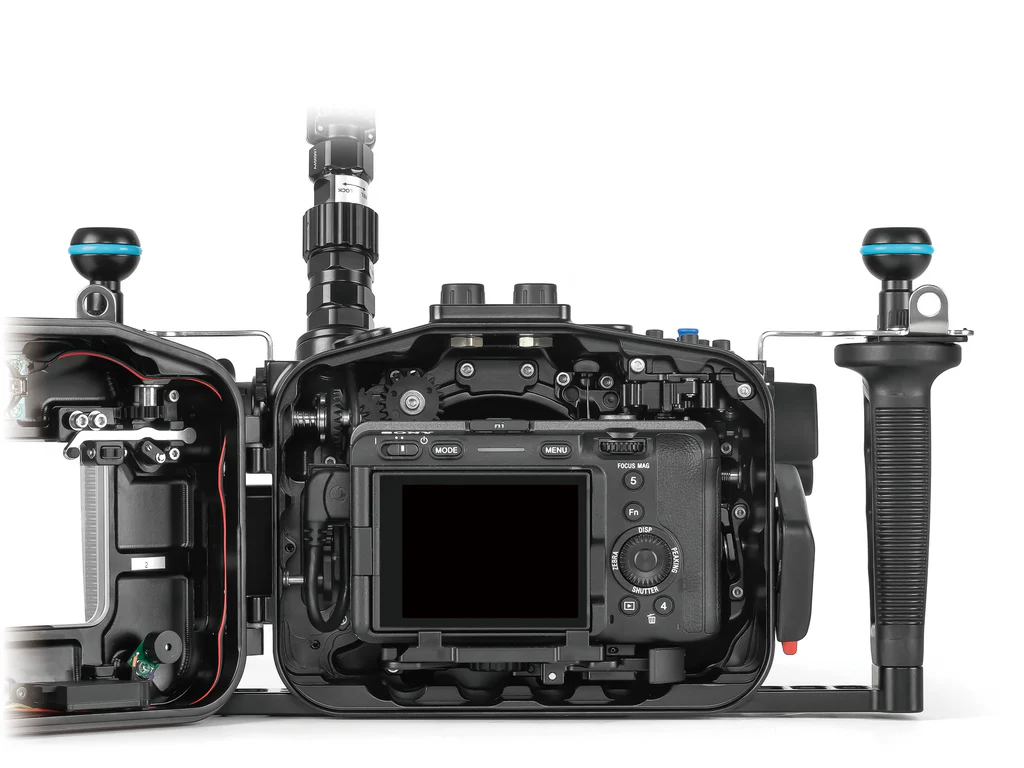

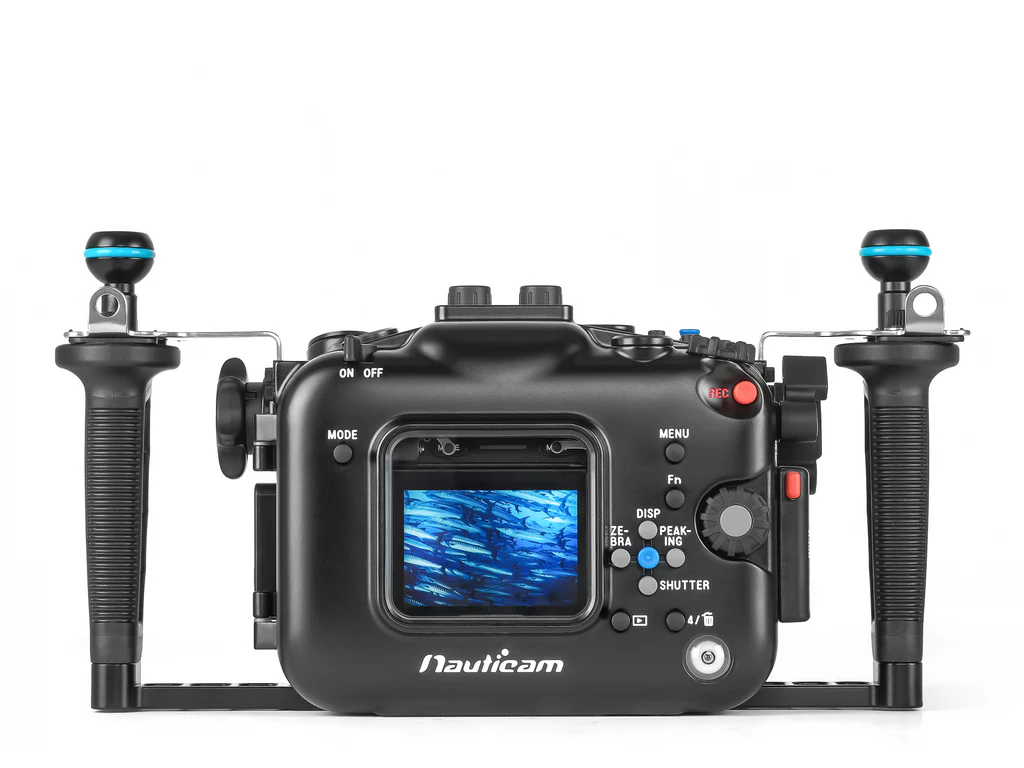

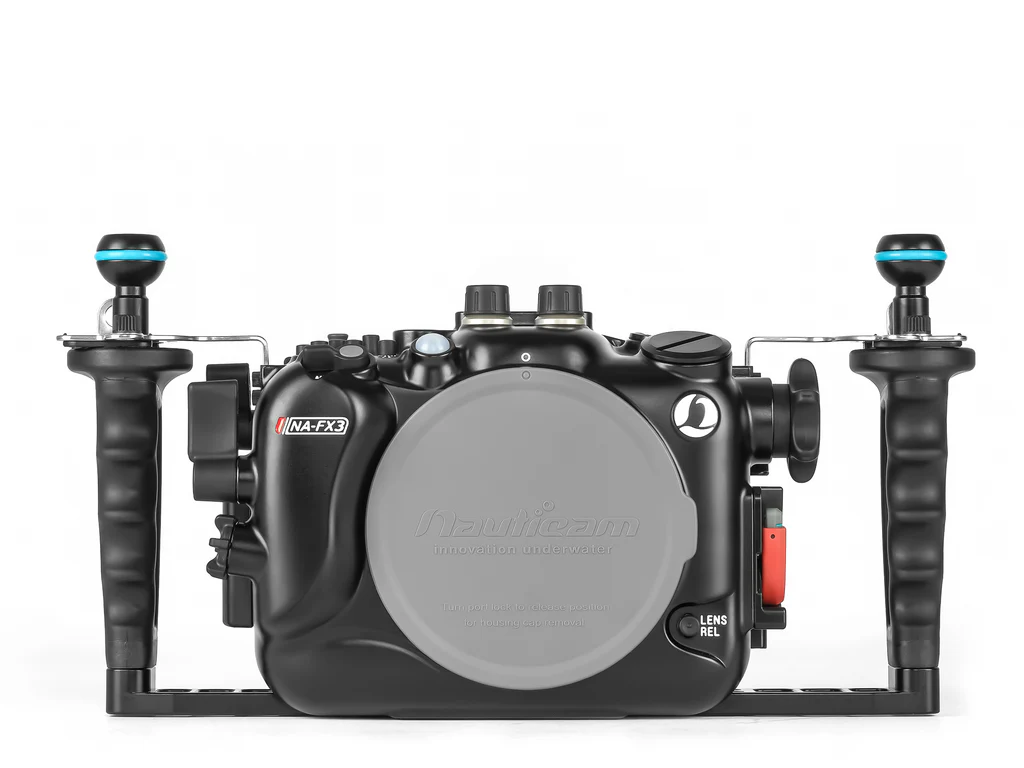

Nauticam FX3 Housing for Sony FX3 Full-frame Cinema Line Camera

Technical Specifications

 Dimensions 320mm(W) x 170mm(H) x 115mm(D)
Weight in air 1.97kg
Weight in water 0.33kg (incl. camera and battery)
Depth Rating 100m
Port Mount N100
SKU: 17431 Category:

Description

Looking at the specs, the Sony FX3 is strikingly similar to the A7S III less an electronic viewfinder.  Take a closer look and its the powerful video features of the A7S III with cinema-centric controls and exterior design.  The FX3 can capture 4K at up to 120fps with 15+ stops of dynamic range with the option for RAW over HDMI.  Controls are optimized for video with direct iris, ISO and shutter angle control.  With the addition of an internal fan, the recording time limit for 4K60p has been removed.  The NA-FX3’s compact size make it ideal for the traveling filmmaker and those looking for a more nimble underwater system.

What’s In The Box

  • NA-FX3 Housing
  • 90139 Spare main O-ring, O-ring remover and lubricant
  •  2x Handles with mounting balls
  • Panasonic CR-2032 Battery
  • Set of Allen Keys
  • Manual instruction card
  • Padded housing bag and shoulder strap

PDF Manual Download

Recommended Accessories

HDMI Output Options

Required accessories for HDMI 2.0 Cable System

  • 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
  • 25703 M24A2R225-M28A1R170 HDMI 2.0 Cable (for NA-FX3 to use with Ninja V housing)

Monitor housing:

  • 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
  • 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5” 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module

Required accessories for HDMI 1.4 Cable System

  • 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
  • 25081 M24-M16 Step Down Adaptor,
  • 25033 Standard HDMI bulkhead with M16 thread
  • M16 spacer (H=10mm)

*25033 and M16 Spacer are included in below monitor housings

Monitor housings:

  • 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
  • 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2″ 4K HDMI Monitor with HDMI 1.4 input

Brand

NAUTICAM
