Description
* Compatible with the Atomos Ninja V, V+, 5.2, Ultra

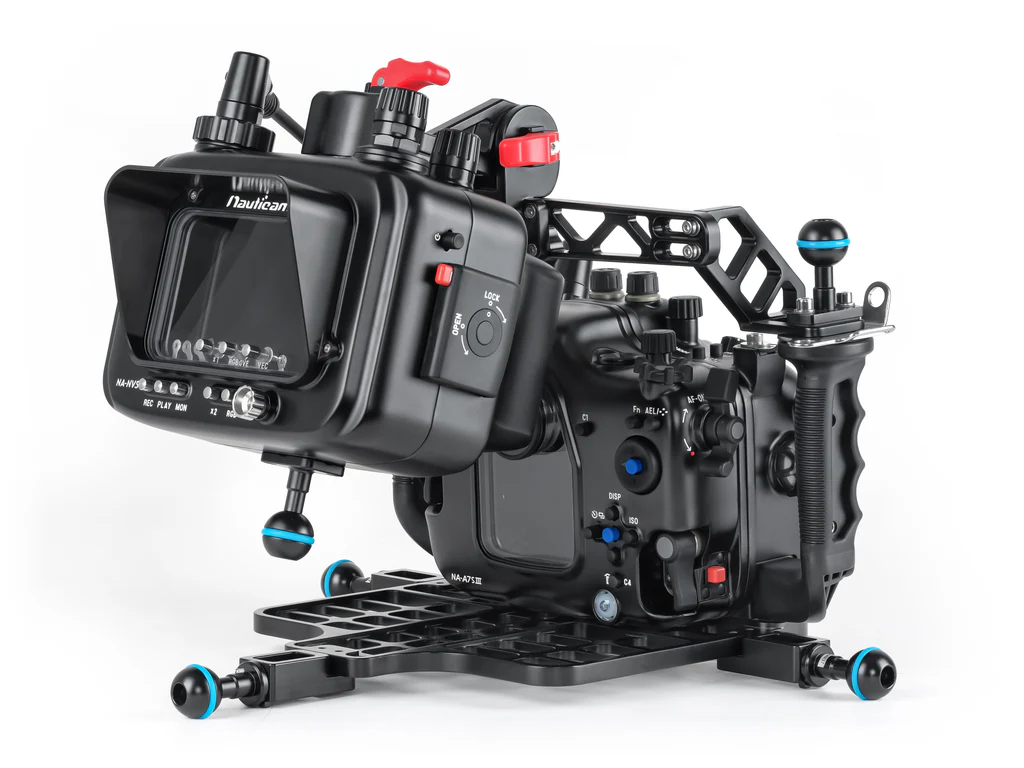

With more cameras offering high quality HDMI and SDI video output, the Atomos Ninja V steps in, not only as a stunning monitor but also as a recorder of 4K 60p 4:2:2 10-bit video to on-board SSD drives in edit-friendly ProRes or Avid formats as well as RAW with supported cameras. The Ninja V+ will allow for up to 4K 120p and 8K 30p ProRes RAW recording. The Nauticam NA-Ninja V-S, when used with supported housings and cameras, allows for the connection of the Ninja V over HDMI 2.0 or SDI in addition to providing easy access to the Ninja V controls underwater. This ‘S’ version allows for the use of the AtomX SDI Module inside the housing to use the Atomos Ninja V as an SDI monitor/recorder or to facilitate SDI cross conversion for a dual/remote monitor configuration.
What’s In The Box:

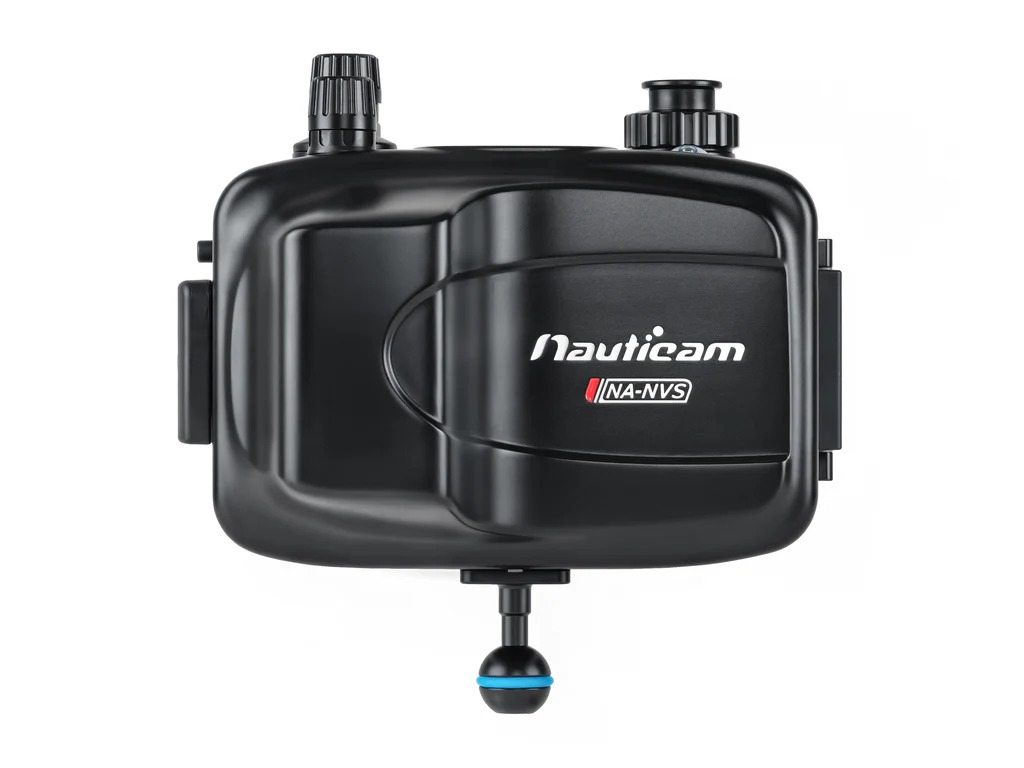

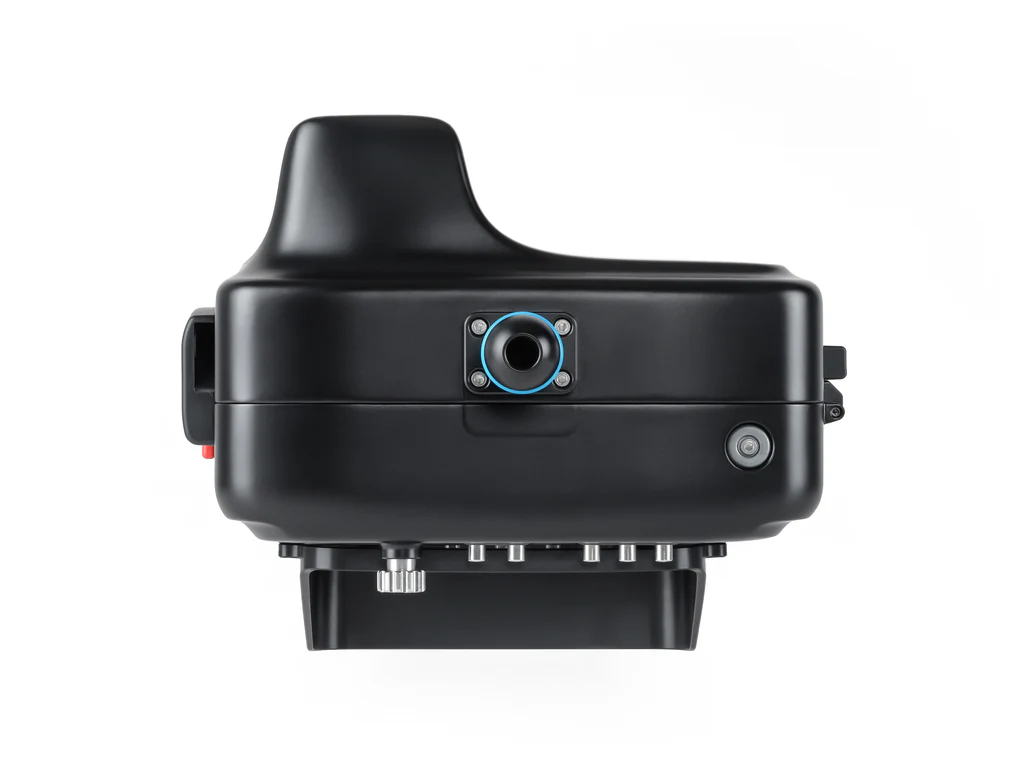

- NA-Ninja V-S Housing
- Monitor Hood
- M16 Vacuum Valve II (pre-installed) PN 25625
- M16 SDI Bulkhead (pre-installed) PN25058
- M28 to M16 Step Down Adapter (pre-installed) PN25080
- Internal SDI Cable PN25060
- M28 HDMI 2.0 Adapter (pre-installed) PN25089
- Mounting Ball
- Spare silicone rubber main o-ring PN 90137
- O-ring removal tool and lubricant
- CR2032 battery
- Allen Wrench Set
Recommended Accessories for HDMI:
- 25077 HDMI 2.0 Cable for NA-XT3 Housing
- 25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
- 25079 HDMI 2.0 Cable for NA-GH5V Housing
- 25082 HDMI 1.4 Cable for HDMI Bulkhead
Recommended Accessories for SDI Input:

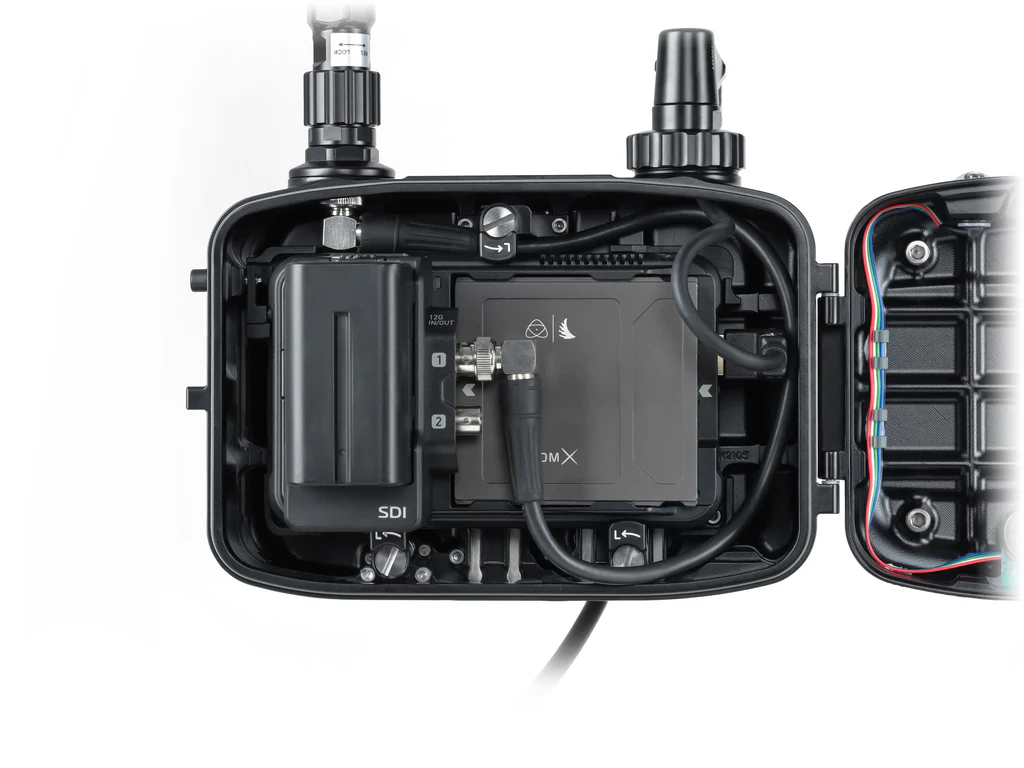

- AtomX SDI Module require for SDI input and output
- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.4m Length
- 25061 SDI Cable in 0.75m Length ~For Connection Between SDI Bulkheads
Recommended Accessories for SDI Output:
- 25064 15m SDI Surface Cable
- 25065 45m SDI Surface Cable
